PANEL ASSEMBLY, 1U, (3X) 4-WAY, w/DC BLOCKING
Model Number 1UPA003
| 1-24 | $301.65 |
| 25-49 | $286.57 |
| 50+ | $277.52 |
- Broadband 698-4200 MHz

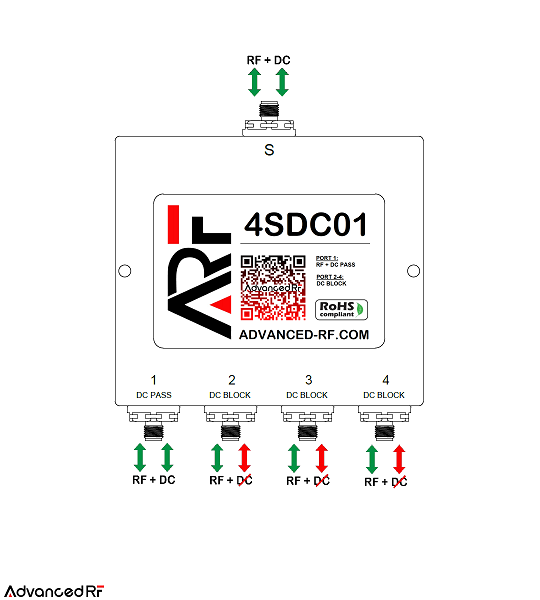

- (3x) 4-Way, With DC Block (50V) Ports
- SMA(f) Connectors
- Fits in a 1U, 19" EIA Rack Space
- RoHS Compliant

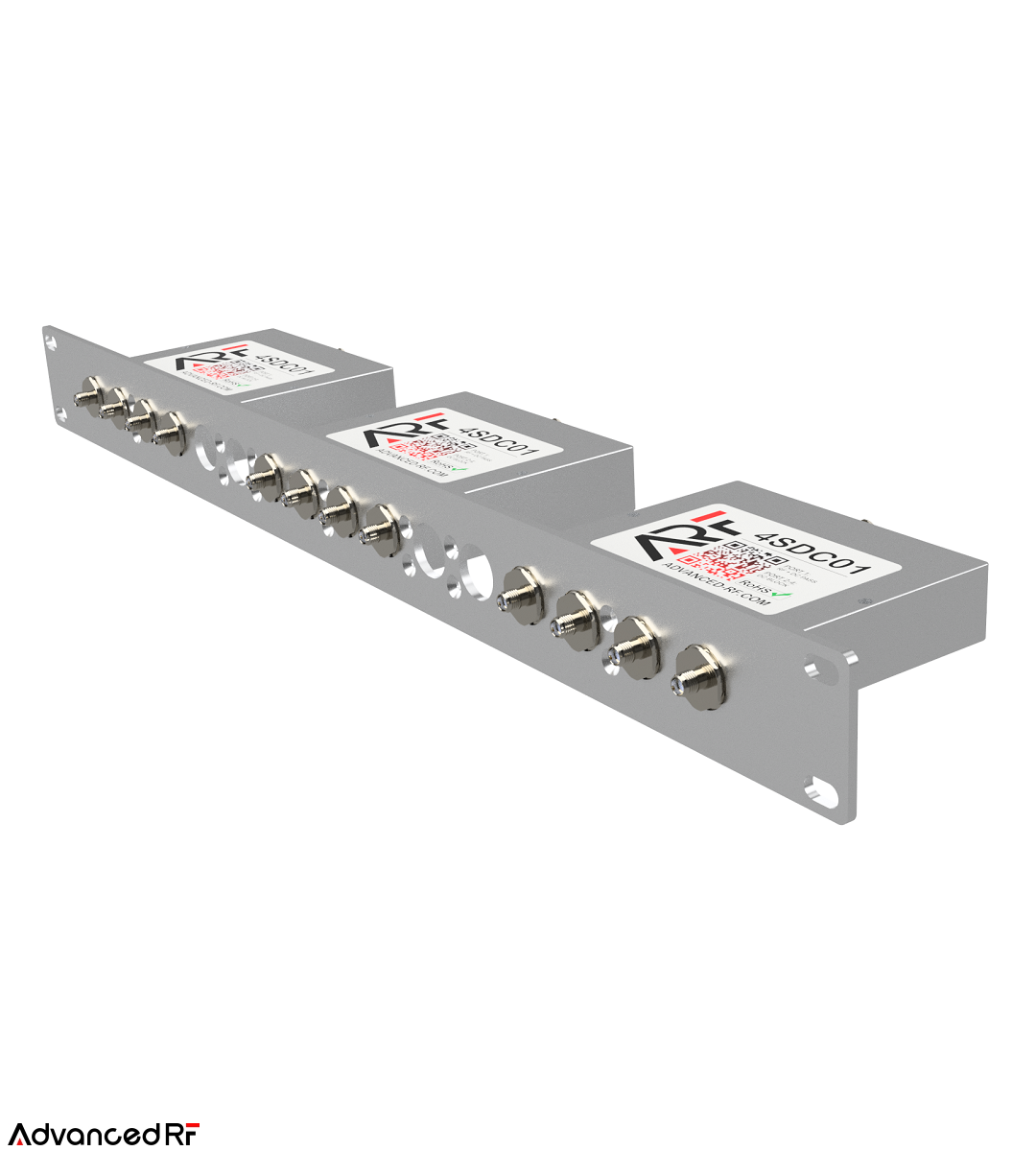

ADVANCED RF panel assembly 1UPA003 combines model 4SDC01 (3x) and rack panel 1U0016 for clean and efficient component organization. Complete assembly drawing here.
The panel assemblies shown on our site are a small representation of our more popular configurations. They demonstrate how a ADVANCED RF rack panel can be utilized by you in your application.
ADVANCED RF splitters/combiners can be installed vertically or horizontally, depending on the rack panel and N, SMA, QMA, TNC or BNC adapters can be added where you need them. If your assembly includes adapters, please remember to use rack panel part no's XXXXXXT (1U0016T, 2U0032T, etc). These panels have the necessary threaded thru-holes required for adapter installation.
Panel assemblies provide a clean, organized way of managing your ADVANCED RF splitter/combiners, adapters and any cable runs you may have.
Your panel. Your layout. Unlimited configurations!
ADVANCED RF provides a one-stop solution! We take our off-the-shelf components and efficiently integrate them to create something unique just for your application. Let ADVANCED RF build your next panel assembly! Contact us or call today: 984-409--0029
Weight: 1320 grams
Related Products
4SDC01, 4-WAY SPLITTER/COMBINER, DC BLOCK, SMA
ELECTRICAL PDF
| FREQUENCY (MHz) | 698 - 4200 |
| IMPEDANCE | 50 Ω |
| INSERTION LOSS (dB) | 1.0 MAX (ABOVE -6.02 dB SPLIT) |
| AMPLITUDE BALANCE (dB) | 0.3 MAX |
| PHASE BALANCE (DEG) | 4 MAX |
| ISOLATION (dB) | 22 MIN |
| VSWR (PORT S) | 1.35:1 MAX |
| VSWR (PORT 1-4) | 1.20:1 MAX |
| VDC (VOLTS) | 50 MAX |
| RF POWER RATING (WATTS) | |
| AS SPLITTER1 | AS COMBINER2 |
| 50 | 1.0 |
MECHANICAL PDF
| CONNECTORS | SMA JACK, BRASS, TRI-ALLOY PLATE |
| CONTACT PINS | BERYLLIUM COPPER, GOLD PLATE |
| HOUSING | ALUMINUM, CHEMICAL FILM |
| INSULATOR | PTFE, VIRGIN ELECTRICAL GRADE |
| TEMPERATURE | -55°C TO +85°C |
| WEIGHT | 394 GRAMS |

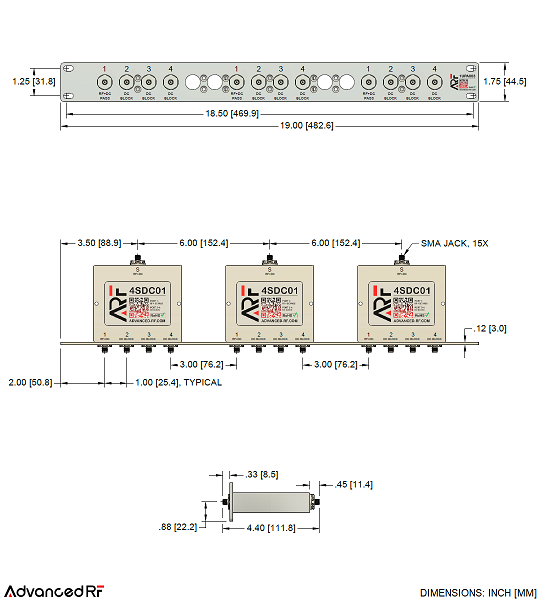

Panel assembly 1UPA003 outline drawing.
Complete features, benefits and mechanical specifications for rack panel 1U0016. Includes guidelines for configuring your own assembly prior to ordering.
Complete electrical and mechanical specifications for power divider/combiner model 4SDC01 including an outline drawing.
DataSheet - 1UPA003, PANEL ASSEMBLY, 1U, (3X) 4-WAY, w/DC BLOCKING
