2-WAY SPLITTER/COMBINER, DC BLOCK, SMA
Model Number 2SDC01
| 1-24 | $57.64 |
| 25-49 | $54.76 |
| 50+ | $53.03 |
- Broadband, 698-4200 MHz
- One (1) Port Block DC (50V)
- Pass 10 MHz All Ports
- High Isolation (>25 dB AVG)
- RoHS Compliant
| FREQUENCY (MHz) | Z (Ω) | INSERTION LOSS (dB) ABOVE SPLIT | AMP BAL (dB) | PHASE BAL | ISOLATION (dB) |
| 698 - 4200 | 50 | 0.6 Max | 0.2 Max | 4° Max | 20 Min |
BAND SPECIFIC PERFORMANCE, IN MANY INSTANCES, WILL BE MUCH BETTER THAN BROADBAND SPECIFICATIONS.

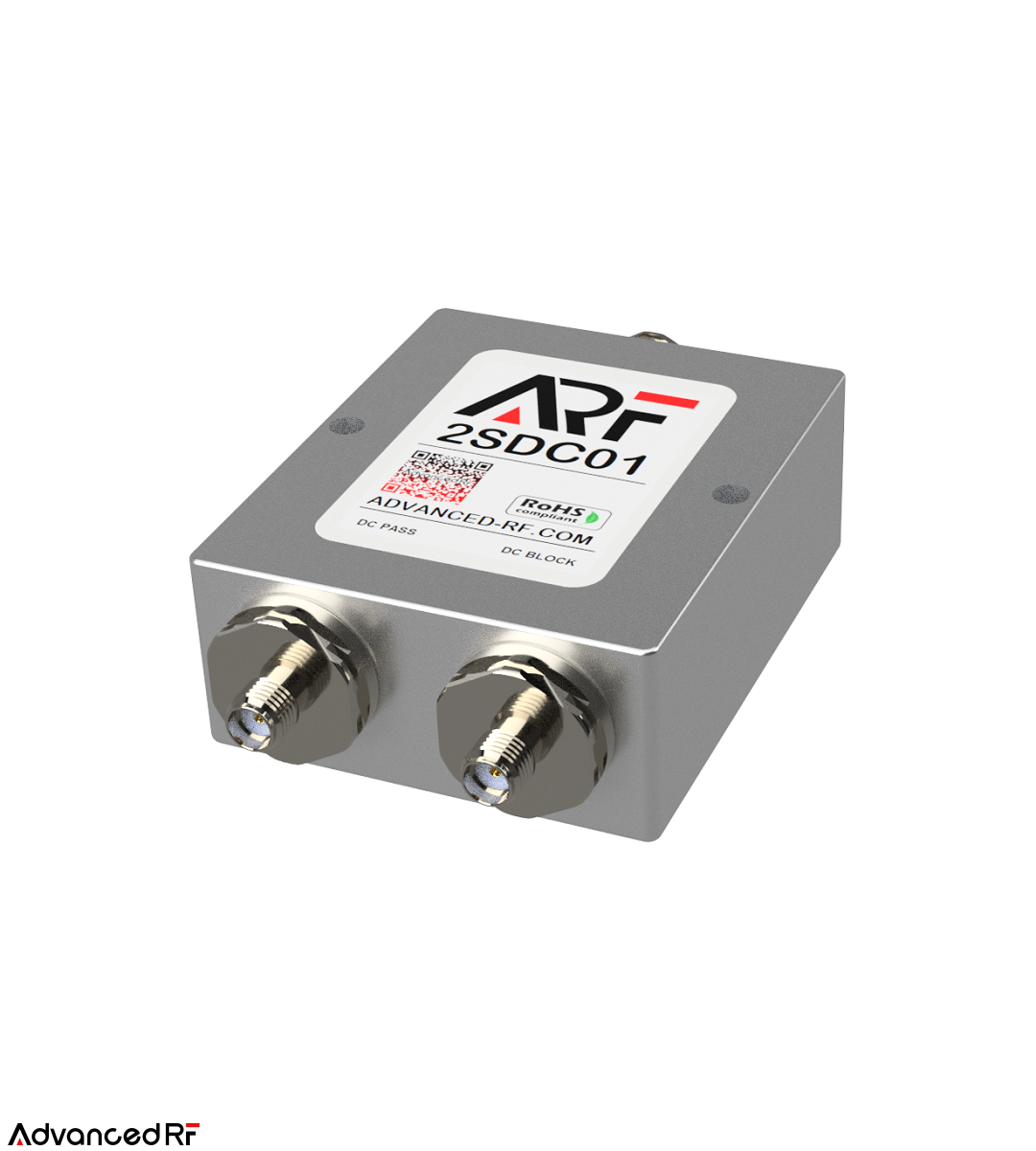

ADVANCED RF 2SDC01 Power Splitter/Combiner – an innovative 2-way microstrip Wilkinson power divider engineered for optimal broadband functionality across 698-4200 MHz. The 2SDC01 model embraces diverse communication bands, including 5G C-BAND, GNSS, LTE, GPS/L-Band, all contained within a singular device. Crafted using RoHS compliant materials, it's furnished with SMA (f) connectors. Furthermore, this power divider offers connector choices like N, TNC, BNC, or QMA.

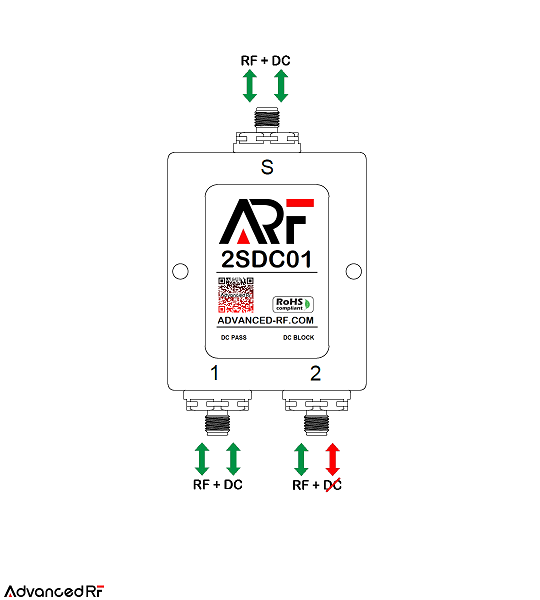

Unique to the 2SDC01 splitter/combiner is an integrated DC block, capable of handling up to 50V. This feature proves invaluable when powering an antenna through one port while sharing the signal with multiple receivers. The Wilkinson divider circuit is meticulously tuned to maintain ideal RF Tx/Rx signal matching. Full specs here.
Note that leaving ports open can degrade performance and cause lasting damage to the 2SDC01 model. To prevent this, ensure a properly matched 50Ω coaxial termination/load is connected to any unused port during operation.
Utilize ADVANCED RF products from initial planning through production, aided by the availability of 3D STEP files in the download section.
Please don't hesitate to contact us for expert assistance in selecting the suitable splitter/combiner for your application.
Weight: 167 grams
Related Products
2-WAY POWER DIVIDER/COMBINER, DC BLOCK, SMA
2SDC02
$63.47
- DC Block All Ports
- SMA Jack (f)
- 698-4200 MHz
ELECTRICAL PDF
| FREQUENCY (MHz) | 698 - 4200 |
| IMPEDANCE | 50 Ω |
| INSERTION LOSS (dB) | 0.6 MAX (ABOVE -3.01 dB SPLIT) |
| AMPLITUDE BALANCE (dB) | 0.2 MAX |
| PHASE BALANCE (DEG) | 4 MAX |
| ISOLATION (dB) | 20 MIN |
| VSWR (PORT S) | 1.20:1 MAX |
| VSWR (PORT 1,2) | 1.20:1 MAX |
| VDC (VOLTS) | 50 MAX |
| RF POWER RATING (WATTS) | |
| AS SPLITTER1 | AS COMBINER2 |
| 50 | 1.0 |
MECHANICAL PDF
| CONNECTORS | SMA JACK, BRASS, TRI-ALLOY PLATE |
| CONTACT PINS | BERYLLIUM COPPER, GOLD PLATE |
| HOUSING | ALUMINUM, CHEMICAL FILM |
| INSULATOR | PTFE, VIRGIN ELECTRICAL GRADE |
| TEMPERATURE | -55°C TO +85°C |
| WEIGHT | 167 GRAMS |

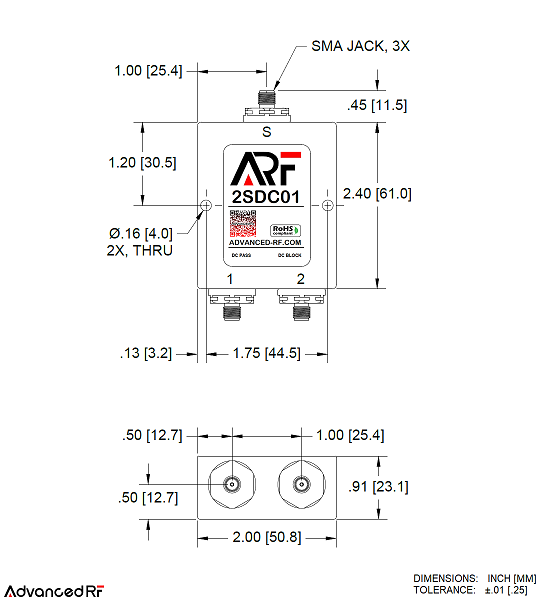

Complete electrical and mechanical specifications for power divider/combiner model 2SDC01 including an outline drawing.
3D model file for power splitter/combiner 2SDC01. Compatible with CAD software able to open the STP/STEP file format.
Please login to download this file.
DataSheet - 2SDC01, 2-WAY SPLITTER/COMBINER, DC BLOCK, SMA
